[CAM] Lithium Zirconium Oxide coated Single Crystal Ni90 Cathode Powder

$155.95 USD

Sale Sold out

Shipping calculated at checkout.

LZO-N90 10g 50g 100g

Li₂ZrO₃coated single crystal Ni90 cathode powder provides superior capacity and rate capability when used with sulfide electrolytes. The Li₂ZrO₃ coating on Ni90 cathode not only provides a protective surface layer but also optimizes the electrochemical performance of the material.

Specification:

Appearance: Black powder
Formula: Li₂ZrO₃(0.4wt%)-LiNi_0.90Mn_0.05Co_0.05O₂
Chemical Name: Lithium Zirconium Oxide coated Lithium Nickel Manganese Cobalt Oxide
Particle Size:
- D10: ~2.0 µm
- D50: ~4.0 µm
- D90: ~7.0 µm

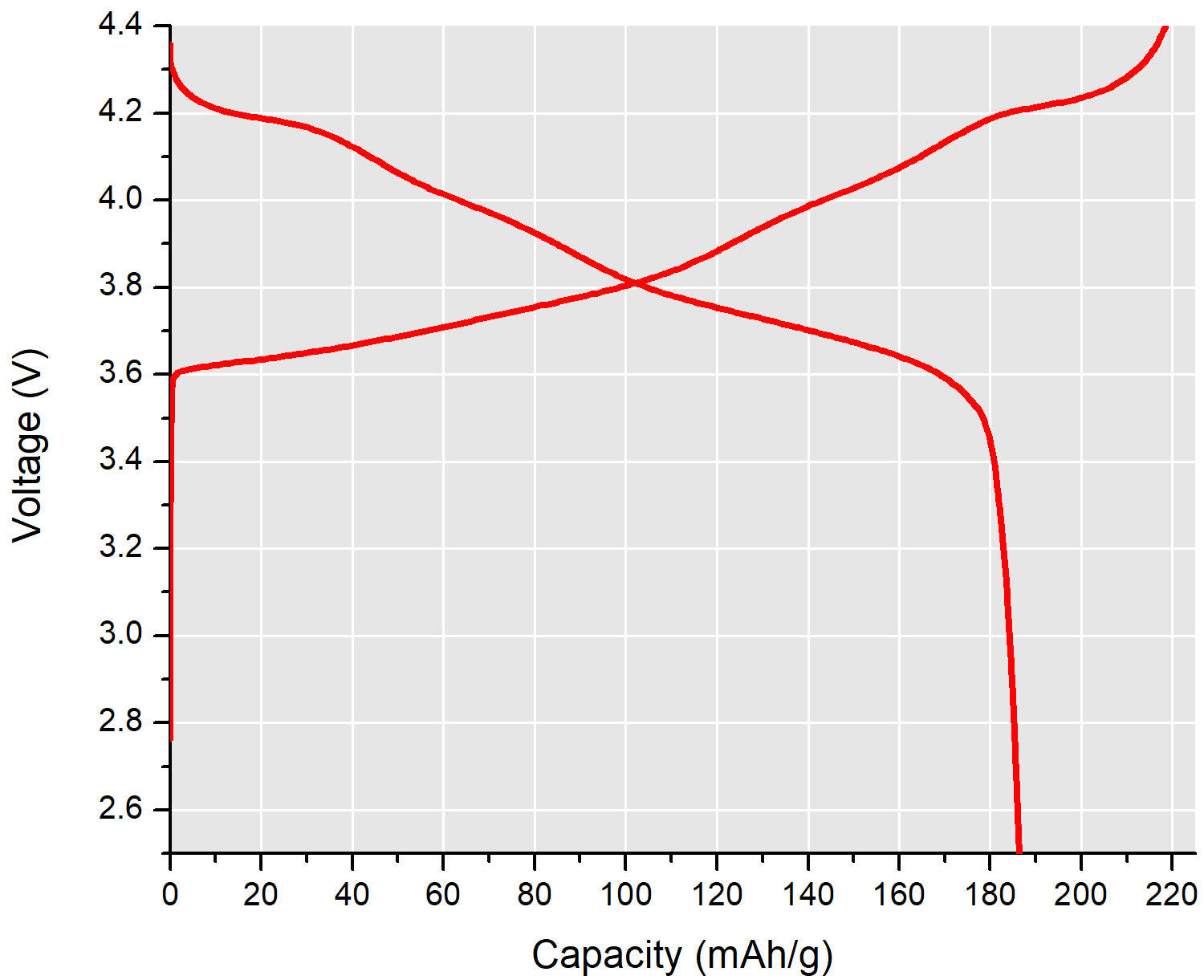

Discharge Capacity ~187 mAh/g (vs. Li, C/20, 2.5-4.4V)
1^st cycle Efficiency: ~85 % (vs. Li, C/20, 2.5-4.4 V)
Testing conditions
- Stack pressure: 10 MPa
- Temperature: 28 °C
- Composite cathode: LZO-Ni90/LPSCl/C (75/22/3)
  - Ampcera Nano sulfide (CL15-N) used.
- Areal loading: 14 mg/cm² of LZO-Ni90
- Current: C/20 (0.133 mA/cm², 1C = 190 mAh/g)
- Cell structure: LZO-Ni90 | LPSCl | Li
