[CAM] Lithium Zirconium Oxide coated High Voltage, High Capacity LCO Cathode Powder

[CAM] Lithium Zirconium Oxide coated High Voltage, High Capacity LCO Cathode Powder

$165.95 USD
$165.95 USD
Sale Sold out
Shipping calculated at checkout.
LZO-LCO

Li2ZrO3 coated High-Voltage, High-Capacity LCO Cathode Powder provides superior capacity and rate capability when used with sulfide electrolytes. The Li2ZrO3 coating on LCO cathode not only provides a protective surface layer but also optimizes the electrochemical performance of the material.

Specification

  • Appearance: Black powder
  • Molecular Formula: Li2ZrO3(0.4wt%)-LiCoO2
  • Chemical Name: Lithium Zirconium oxide coated Lithium Cobalt Oxide
  • Particle Size:
    • D10:  ~3.0 µm
    • D50:  ~5.5 µm
    • D90:  ~10.0 µm

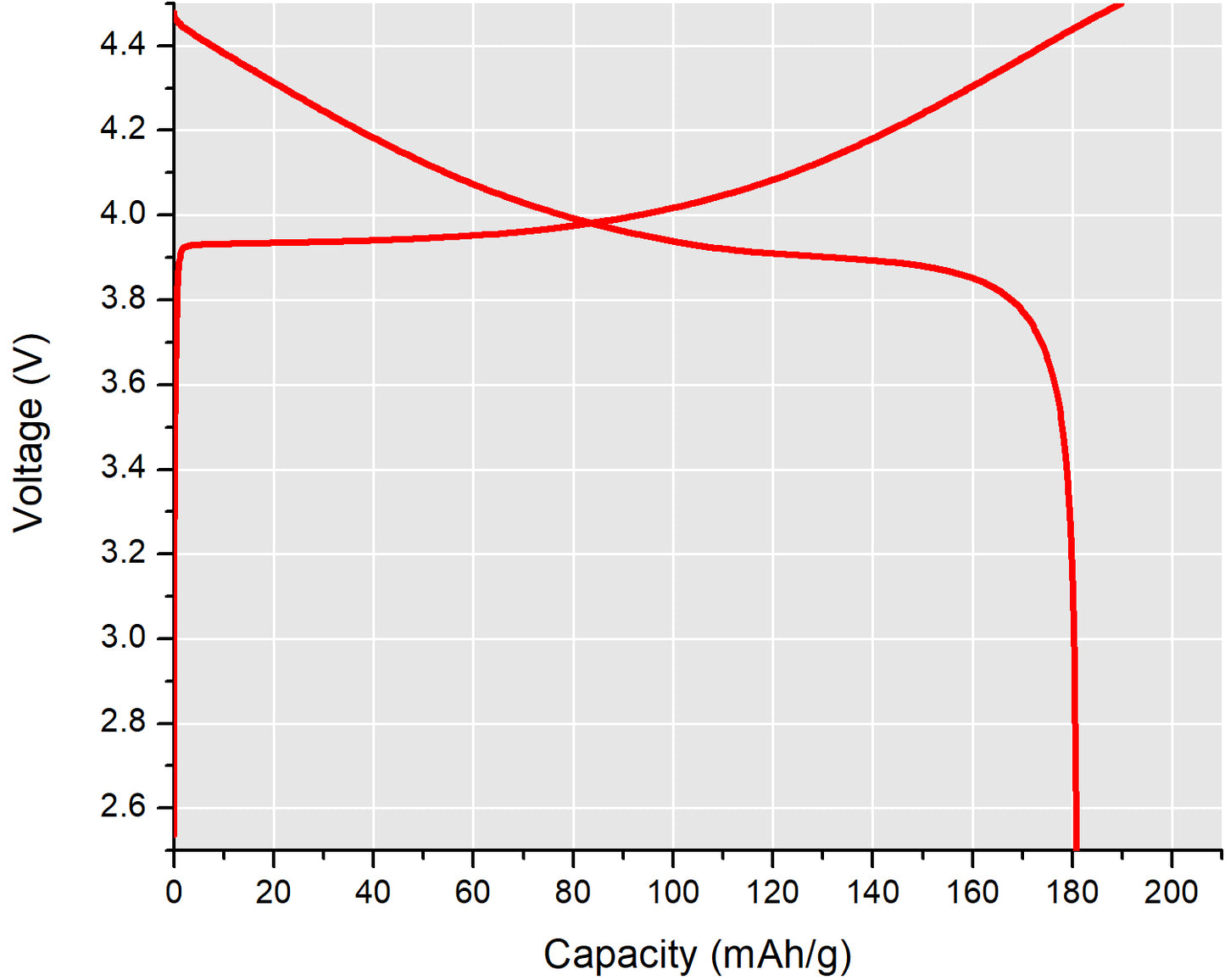

  • Discharge Capacity ~180 mAh/g (vs. Li, C/20, 2.5-4.5V)
  • 1st cycle Efficiency: ~95 % (vs. Li, C/20, 2.5-4.5 V)
  • Testing conditions
    • Stack pressure: 10 MPa
    • Temperature: 28 °C
    • Composite cathode: LZO-LCO/LPSCl/C (75/22/3)
      • Ampcera nano sulfide (CL15-N) used.
    • Areal loading: 14 mg/cm2 of LZO-LCO
    • Current: C/20 (0.126 mA/cm2, 1C = 180 mAh/g)
    • Cell structure: LZO-LCO | LPSCl | Li

*Please note that capacity may vary depending on temperature, stack pressure, cell design and composite cathode ratio.



Publications using Ampcera coated cathode (to list a few)
