SPAN-S50 Sulfurized Polyacrylonitrile Powder for Li-S batteries

Product Overview
SPAN-S50 is a premium-grade sulfurized polyacrylonitrile (SPAN) powder engineered specifically for advanced battery research and commercial development. Designed to overcome traditional sulfur cathode limitations—such as polysulfide shuttling and volume expansion—our B35 process grade delivers outstanding electrochemical stability, high electronic conductivity, and uniform particle distribution.
⚡ High Specific Capacity
Target sulfur loading of 45–52 wt% bound within a conductive polyacrylonitrile backbone for maximum capacity utilization.

 ⚡Controlled Particle Size
Micronized S50 grade delivers a tightly controlled median diameter (Dv50 = 5.0–10.0 μm) ensuring optimal slurry mixing.

⚡High Chemical Purity
Rigorously monitored for trace metals via ICP-OES to prevent battery degradation (Fe ≤ 100 ppm, Cu, Ni, Cr; 10 ≤ppm).

⚡Amorphous Structure
XRD analysis confirms a broad amorphous halo (24–26° 2θ) without sharp crystalline sulfur peaks, suppressing polysulfide dissolution.

Visual

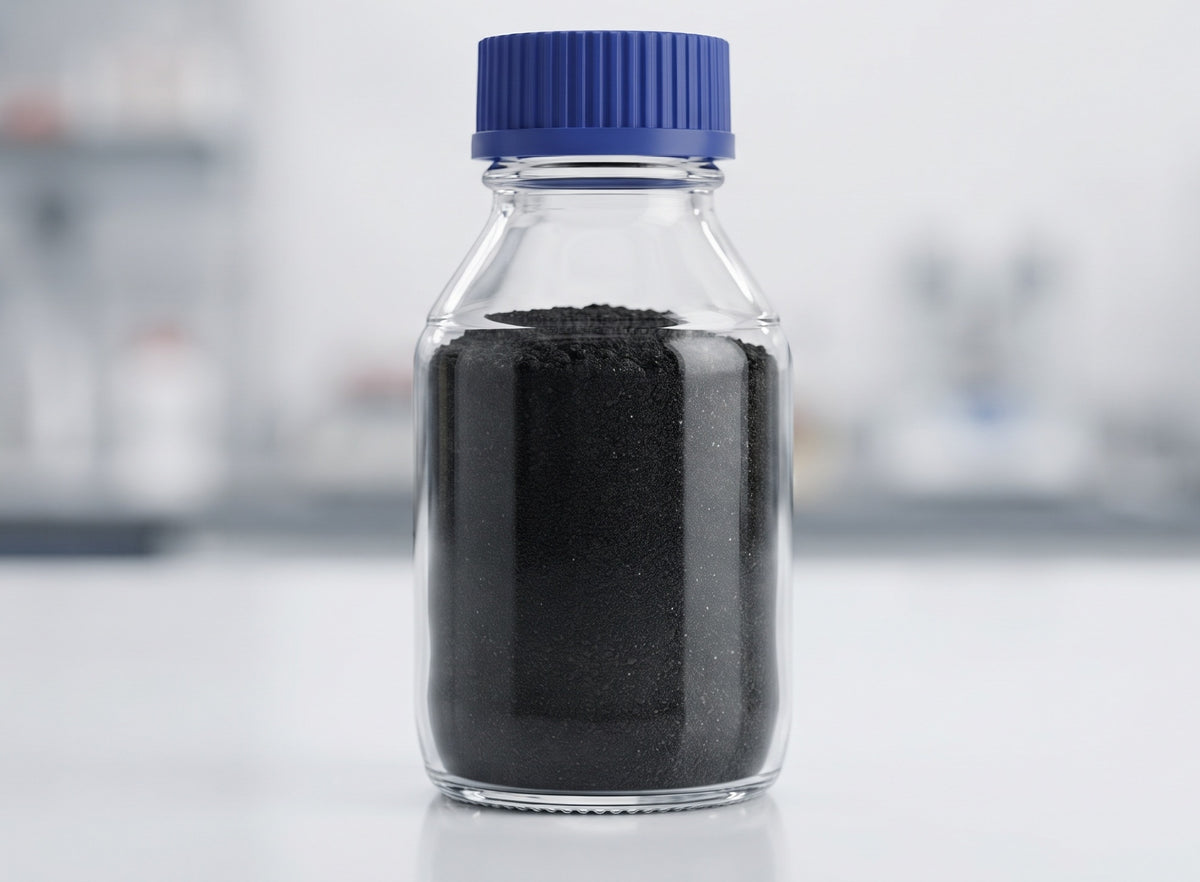

Representative Appearance: Uniform Black Powder

Technical Specifications

Total Sulfur Content 45.0 – 52.0 wt% (Design) 48.0 – 50.0 wt% (Typical) TGA
Particle Size (Dv10), 2.0 – 6.0 μm: 3.47 μm
Particle Size (Dv50), 5.0 – 10.0 μm: 7.73 μm
Particle Size (Dv90),  ≤ 40.0 μm:  25.53 μm
BET Specific Surface Area,10.0 – 18.0 m²/g: 13.14 ± 0.05 m²/g N₂-BET

Iron (Fe) Content ≤ 100 ppm: 13.18 – 20.69 ppm ICP-OES

Heavy Metals (Cu, Ni, Cr) ≤ 10 ppm: 0.005 ppm, ICP-OES

Structure (XRD):  Broad peak ~24–26° 2θ Peak at 24.78° (d = 3.591Å) XRD

Applications & Storage
 Lithium-Sulfur (Li-S) Batteries: Ideal active cathode material for high-energy-density solid-state and liquid electrolyte Li-S battery development.
 Slurry Formulation: Integrates smoothly into standard NMP/PVDF or aqueous binder systems for pilot-scale and laboratory casting.
 Handling & Storage: Store in a cool, dry place under an inert atmosphere (Nitrogen or Argon recommended) to preserve long-term performance.

Quality Assurance Note:

Data presented represents typical technical characteristics. A lot-specific Certificate of Analysis (COA) with unique production tracking numbers is provided with every commercial dispatch.
